Megaohmetru Sonel MIC-5001
Fisiere utile
Descriere produs:

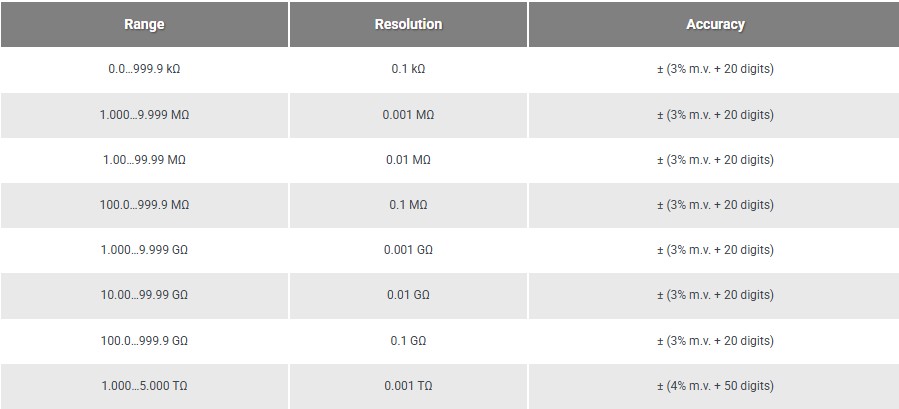

Insulation resistance measurement
Measurement range acc. to IEC 61557-2 for (R_{ISOmin}=frac{U_{ISOnom}}{I_{ISOnom}})…5 TΩ
“m.v.” - measured value
→ max. short-circuit current ISC: up to 1.5 mA

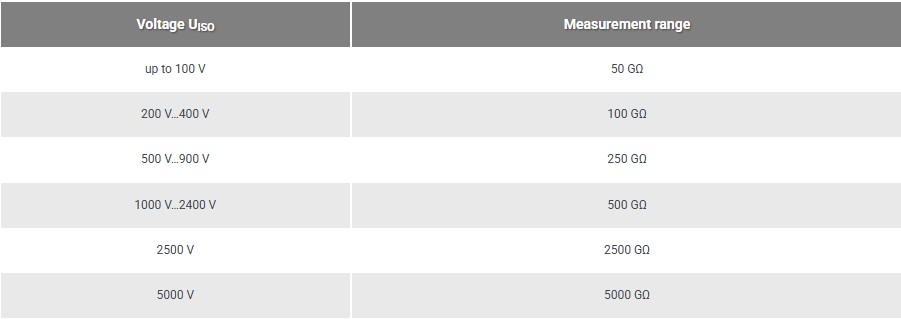

Values of measured resistance depending on measuring voltage
→ max. short-circuit current ISC: up to 1.5 mA
Values of measured resistance depending on measuring voltage

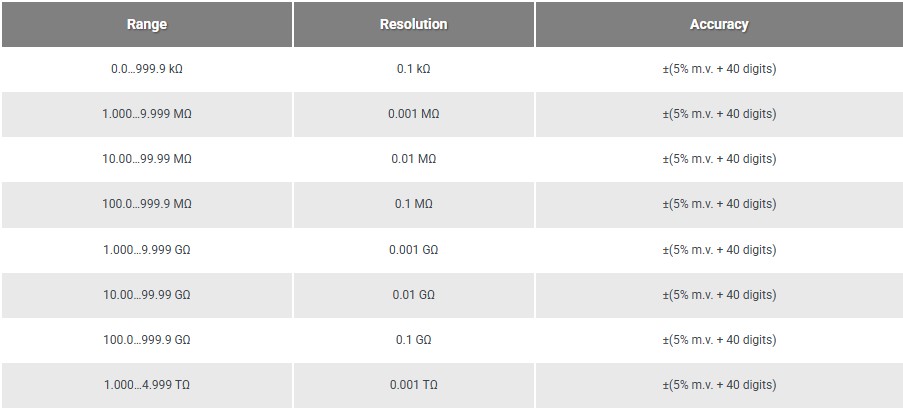

RampTest insulation resistance measurement
The measurement of breakdown voltage in RampTest mode

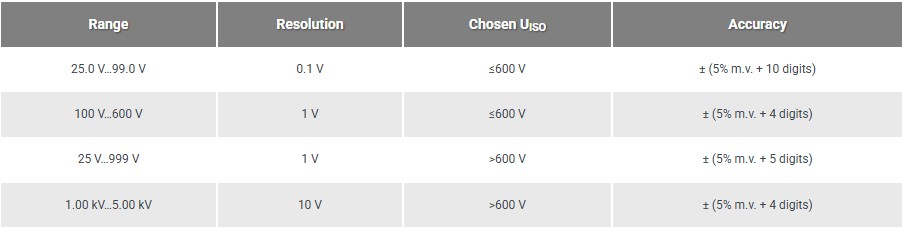

DC and AC voltage measurement
→ frequency range: 45...65 Hz
Toate accesoriile au garantie 1 an, inclusiv cele livrate cu instrumentele care au un termen de garantie mai mare.
Pentru modelele la care nu se specifica in mod expres faptul ca includ certificat de etalonare, se poate solicita obtinerea unui certificat, costul depinzand de aparatul etalonat.
